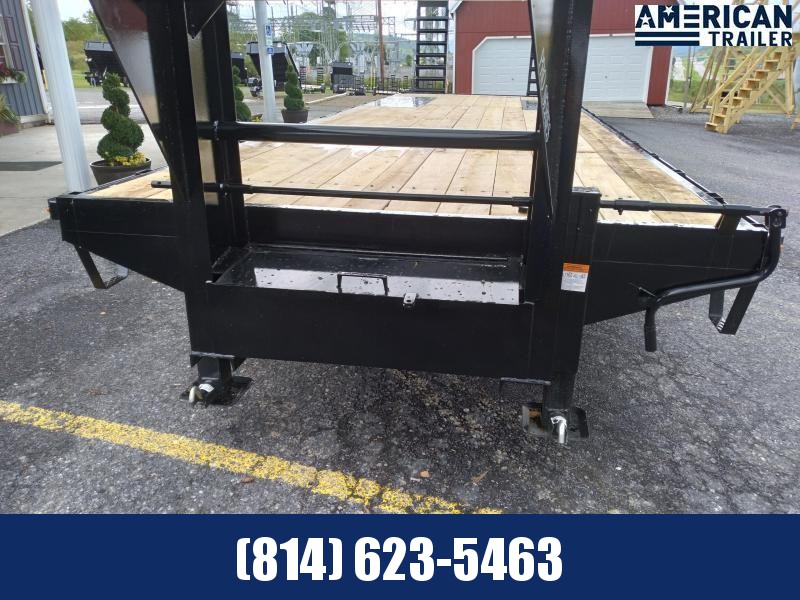

American Trailer Gooseneck Deckover - 40'+5' (dovetail) - 30K GVWR - Lay Flat Mammoth Ramps - 34" Deck Height - Spare Included
These are all cash prices. Cards are extra 3%. No out-of-state personal checks. Call today for an out the door quote! American Trailer Gooseneck Deckover - 45' - 30K GVWR G.V.W.R.: 30,000 lbs Empty Trailer Weight: 8,500 lbs (20' trailer with no additional options) Net Payload Capacity: 21,500 lbs (20' trailer with no additional options) Axles: Dual tandem 15,000 lb 8 lug (electric brakes on both axles) Suspension: Heavy duty slipper spring Brakes: All wheel electric brakes on all axles (12" x 5" brake shoe) Tires: New 17.5" ST215/75R17.5 16ply radial LRH (4,805 lbs ea) Wheels: 17.5" eight hole white or silver (based on stock) Main Frame: 14" I-Beam Gooseneck Risers: 14" I-Beam Gooseneck Beams: 14" I-Beam 14" I-Beam Cross Members: 4" channel on 16" centers (pierced thru the frame) Outer Deck frame: 6" channel Deck Length: 45' Deck width: 102" overall Deck height: Approximately 34" Flooring: 2" treated pine (screwed down) Tie downs: Stake pockets (on 24" centers) with rub rail (2" tall x 3/8" thick) Storage: Front locking chain box with lid built into gooseneck Dovetail: 5' self cleaning (n/a on all flat deck models) Ramps: 5' fold over deck level spring assisted (dovetail models) Coupler: Adjustable height 2 5/16" gooseneck ball Jacks: Dual 12,000 lb drop leg jacks (spring loaded) Lights: All flush mount or recessed lifetime LED lighting Wiring: USA made sealed modular wiring harness Safety Chains: Two heavy duty safety chains Safety Features: All required DOT lighting, safety chains, reflective tape and emergency break-a-way switch Finish: Fully primed and painted with automotive grade acrylic enamel Torque Tube: Torque Tube (prevents trailer twist) Frame Bridging: Frame Bridging (prevents trailer bowing
